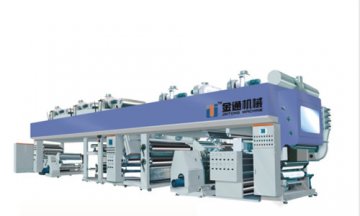

STZGM Micro computer automatic PVDC high barrier film coating machine

Product parameter


Effective coating width:1100mm-1600mm
Maximum speed:280m/min
The thickness of base material: film 0.012-0.05mm, paper 40-120gsm
Heating mode: electric heating, steam heating and transmitting deep fat generator
The manner of rewind and unwind: double position, automatic roll changing device.


Details


Adopt the vector transducer cooperate with SIEMENS PLC programmable controller and digital modules to achieve the One-stop control. Rewind automatic taper tension descending control (constant tension keep) function, it can avoid the finished product in rolls crush injury, scratch, to ensure the rewind side tidy. This machine has some automatic stop functions, such as roll ending early-warning, voltage fluctuations early-warning, cutting material early-warning. The error correction device of high precision which can effectively control the displacement of the base material. Energy-saving drying solidifying device, using the exhaust heat in recycle. Benefits: in line with environmental protection, high efficiency and energy saving can be more than 30%.
It has the function of monitoring and alarming of gas concentration as well as safety relief vent function. Intelligent control system of temperature in line with a unique design of the structure of the inner wind chamber, making air flow scientific and rational, temperature uniformity.
Useage

This machine applies to produce the PVDC high barrier film, which are used in the food packaging, tobacco packaging, cosmetics packaging, chemical packaging and so on.
