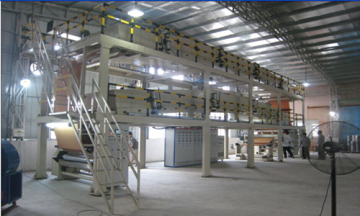

STSTB-B Microcomputer automatic coating machine of stone paper double-sided

Product parameter
Effective coating width: 1100mm-1600mm
Maximum speed: 15-100m/min
Coating material: PET、OPP、PP、Paper
Laminating material：0.06~0.35mm
The maximum roll placing diameter: Φ800mm（paper3” 6”）
The maximum rolling diameter: Φ800mm（paper3” 6”） Details


This machine is controlled by conducting computer integrated conduct by applying Simenz PLC programmable control device and digital module. So it realizes constant roll down, constant control of the tensile force of Dryer and conical degression for central rolling, this can avoid the finished product in rolls crush injury, scratch, to ensure the rewind side tidy. Whenever the machine is stopped during its running, it keeps its tensile force. Also whenever the machine is turned on from stalling mode, it keeps its tensile force. In addition, there are three EPC automatic air-sensitive error correcting systems on Roll-placer rack, the first oven and the second oven.
The heating will be automatically stopped when it is reached the setting temperature in the dryer. If the temperature is 2oC lower than the setting temperature, the dyer will start automatic heating. It contains interlock circuit for exhaust-equipment and heating system, so it improves the safety and reliability of production. The dryer uses Out Electronic Blower, it is excellent about keeping warm, low energy consumption with evenly heating. Also the intelligent temperature Control system is applied in this machine, it makes sure the accurate accuracy of temperature control. The machine has the system-recover-function in case of accidence.
Useage

This machine applies to coat PET, OPP, PP, Paper, RMP and so on.
