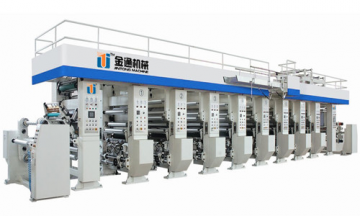

Gravure printing machine

Product parameter
1、Printing width: 850/1050/1250mm
2、Maximum speed: 200m/min
3、Printing plate diameter: Φ128mm—Φ288mm
4、Printing length: 380mm—882mm
5、The maximum diameter of rolls: Φ800mm
6、Independent turret bi-directional Rotary and double position
7、Inking method: Diaphragm air pump and recycling ink
8、The automatic horizontal distance of the Scraping  knife: 8mm
9、The maximum imprint pressure: 500kg/ full width
10、closed-loop control with seven motors and four vibrating rollers
11、Tension control: 3-30kg/full width
12、automatic roll changing device
13、Drying method: Closed unilateral dryer
14、The lowest pressure of gas: 0.6Mpa
15、Printing chromatic number: Depending on the user requirement
16、Total motor power: Depending on the chromatic number

Usaege: In the paper and packaging industry, it's mainly used in folding cartons, flexible packaging, stickers, wrapping paper and the printing of composite cans.
