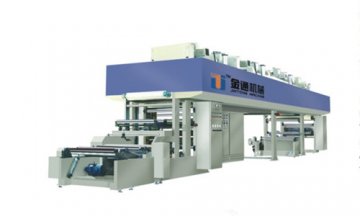

STZTB Micro computer automatic paper coating machine

Product parameter
Effective coating machine:650-1600mm
Maximum speed:150m/min
The diameter of rolls:1200mm
Single position or double position with automatic roll changing device Details
Adopt the vector transducer cooperate with SIEMENS PLC programmable controller and human- machine interface touch screen’control to achieve the One-stop control. Multi-segment tensions take the use of the automatic closed-loop control of high precision to achieve the dynamic and simultaneous control of the whole machine. With the function of the rewind tension automatic taper descending control (constant tension maintaining),it can prevent the finished product in rolls from being crushed and scratched to ensure the rewind side tidy. This machine has some automatic stop functions, such as roll ending early-warning, voltage fluctuations early-warning, cutting material early-warning. The error correction device of high precision which can effectively control the displacement of the base material. Energy-saving drying solidifying device, using the exhaust heat in recycle. Benefits: in line with environmental protection, high efficiency and energy saving can be more than 30%.
It has the function of monitoring and alarming of gas concentration as well as safety relief vent function. Intelligent control system of temperature in line with a unique design of the structure of the inner wind chamber, making air flow scientific and rational, temperature uniformity.
Usage
This machine applies to the base coat and top coat of metalized paper.
