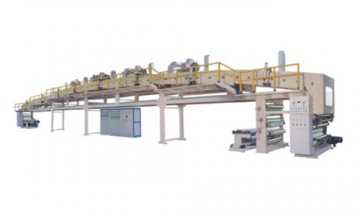

STDD Micro computer automatic conductive film coating machine

Product parameter
Effective coating width: 650-1800mm
Maximum speed : 60m/min
Coating material: PET、PS、PVC、PP
The thickness of base material: 0.5-1.5mm
The maximum roll placing diameter: Φ800mm（paper3”）
The maximum rolling diameter: Φ800mm（paper3”） Details


This machine is controlled by conducting computer integrated conduct by applying Simenz PLC programmable control device and digital module. So it realizes constant roll down, constant control of the tensile force of Dryer and conical degression for central rolling. Whenever the machine is stopped during its running, it keeps its tensile force. Also whenever the machine is turned on from stalling mode, it keeps its tensile force. There are two EPC automatic air-sensitive error correcting systems on Roll-placer rack and the exit of drying path. The heating will be automatically stopped when it is reached the setting temperature in the dryer. If the temperature is 20℃ lower than the setting temperature, the dyer will start automatic heating. It contains interlock circuit. For exhaust-equipment and heating system, so it improves the safety and reliability of production. The dryer uses Out Electronic Blower, it is excellent about keeping warm, Low energy consumption with evenly heating. Also the intelligent temperature Control system is applied in this machine, it makes sure the accurate accuracy of temperature control.
Adopting micro-computer vector speed control by frequency variation conducting computer integrated conduct by applying plc programmable control device and digital module, equipped with industrial human-computer interface touch screen operation, and have advantages of easy operation and high automation degree. This machine has all perfect setting before it is sold, the users just need to adjust is speed, this machine will realize automatic and dynamic simultaneous control.
Useage

This machine applies to produce conductive film, insulation film, anti-static film and so on.
